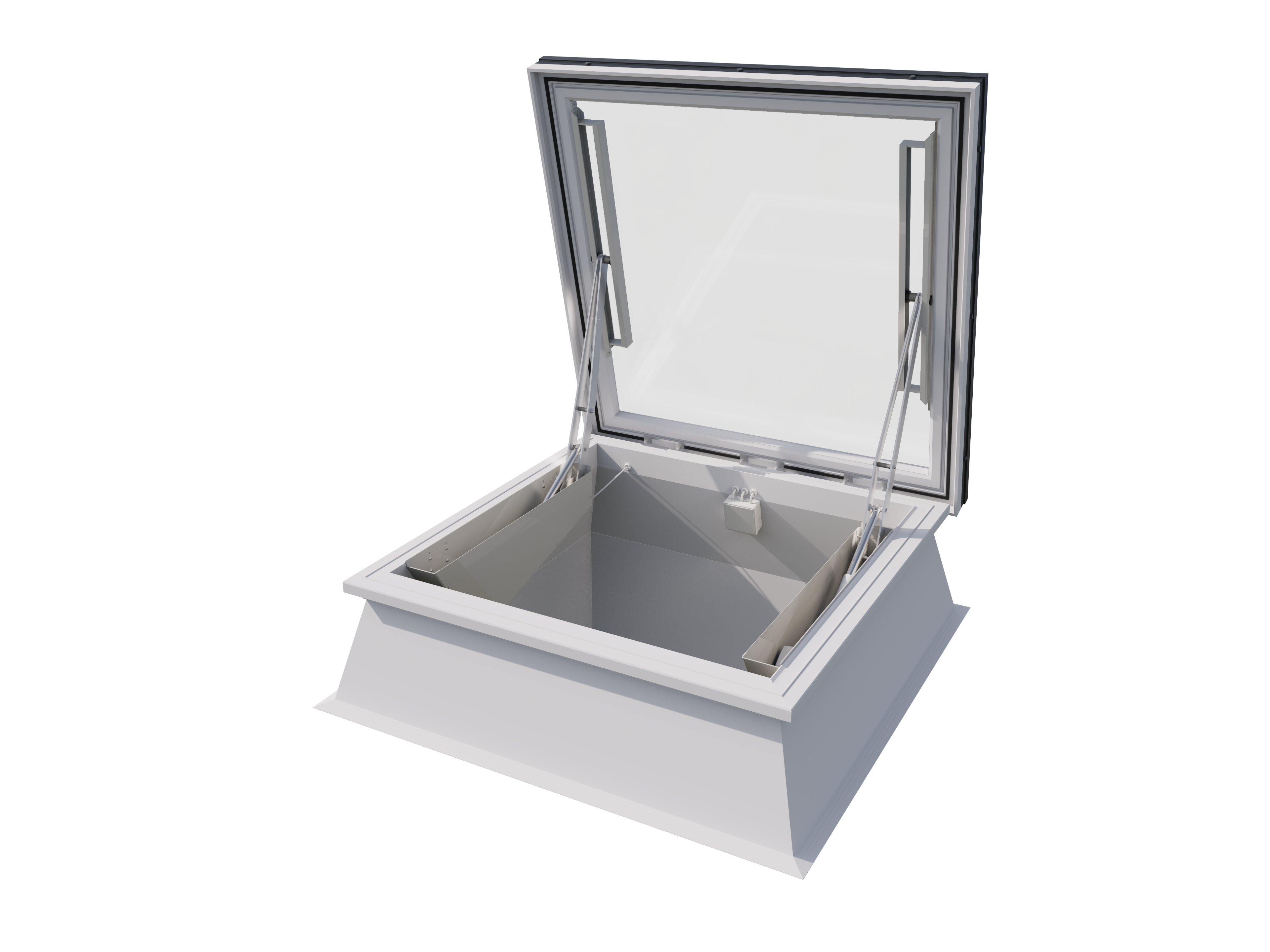

Flat Glass Access Hatch

download brochure Find document

Benefits

  • Modern and stylish flat glass rooflight design
  • Elegant aluminium frame powder coated in choice of RAL 7016 grey or RAL 9005 black
  • Safe, easy access to flat and low pitch roofs
  • Large daylight and ventilation area
  • Highly thermally efficient with thermally isolated frame and double glazing offering overall U-values as low as 1.72W/m²K
  • Safety of those below and above the rooflight assured thanks to a laminated inner pane and the product achieving non-fragility to CWCT TN-67 (for class 1 or 2 roofs depending on size) and Class B non-fragile to ACR[M]001 when new and fully installed to Brett Martin installation guidelines
  • 10 year warranty
  • Quick and easy to install

Features

  • Available in sizes from 1000 x 1000mm up to 1500 x 1500mm square or 2000 x 1000mm rectangle
  • Units supplied with 24V tandem actuators and 300mm high PVC kerb
  • Optional 230V AC to 24V DC transformer with rocker switch
  • Optional wind and rain sensor
  • A range of special glass options available

Available in sizes from 1000 x 1000mm up to 1500 x 1500mm square or 2000 x 1000mm rectangle

4 stocked sizes available on 7 working day delivery

Sizes available
1000 x 1000
1200 x 1200
1500 x 1000
2000 x 1000


Bespoke sizes available

Glazed with Low-E insulated double glazed glass units

6mm toughened outer, 90% Argon filled cavity, 6.8mm laminated soft coat Low E inner with PVB interlayer (NB: -for larger sizes inner pane increases to 7.5mm or 9.5mm)

Centre pane U value* of 1.1W/m²K

Special options available including solar control, tinted and obscured glazing

*Centre pane U-value is a measure of the thermal efficiency of the glazing type, measured vertically

Powder coated aluminium frame available in 2 colour options.

  • RAL 7016 grey
  • RAL 9005 black
