Roof Lantern

Find document

Benefits

  • Stylish glass rooflight with slender aluminium frame offering clean sight lines and neat junctions.
  • Rapid single point delivery in 3-5 days from order
  • Designed for rapid installation with no silicone sealant other than to seal between roof and rooflight.
  • Offering safety as standard thanks to a laminated inner glass pane protecting those below from falling glass in the event of accidental breakage
  • Highly thermally efficient with thermally broken frame and Low-E double glazing
  • 10 year warranty available

Features

  • Available in 9 standard sizes and bespoke sizes
  • Choice of clear self-clean or blue solar-control self-clean glass as standard
  • Special glass options also available
  • 4 panes of glass as standard for a contemporary look, with the option of 6 panes for a more classic aesthetic.
  • Aluminium frame powder coated internally and externally colour combinations of RAL 7016 grey, RAL 9010 white and RAL9005 black
  • Designed for simple mounting direct to a weathered builder’s upstand.

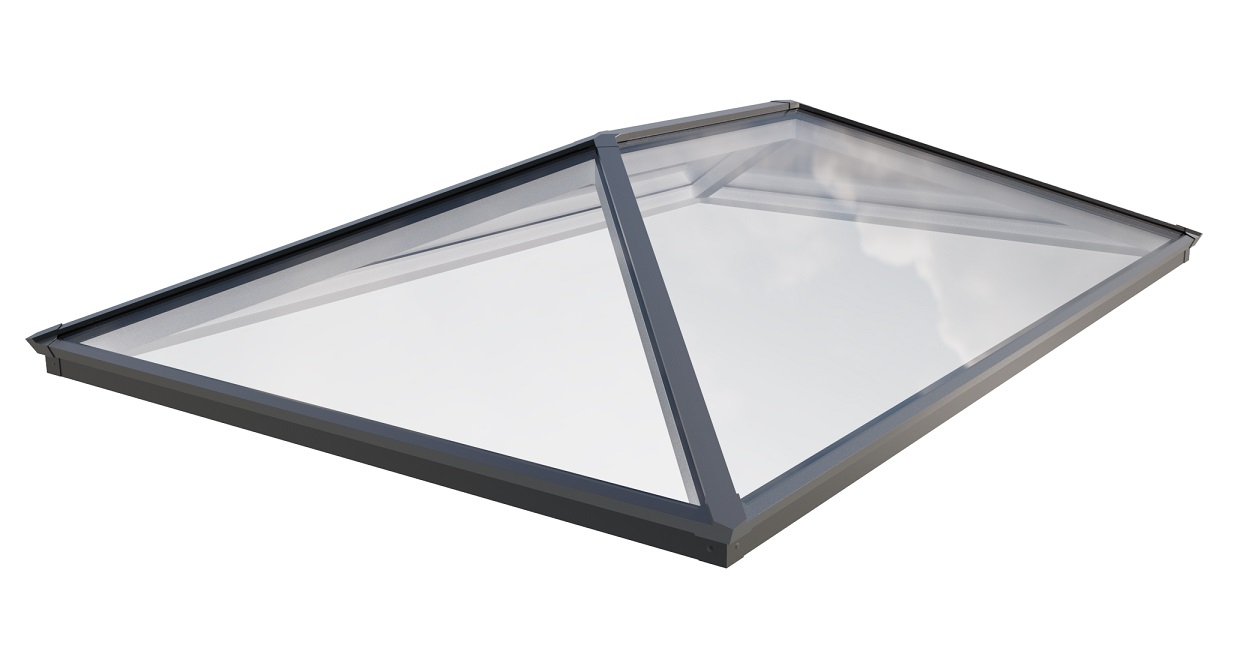

Standard size stock units are supplied with 4 panes of glass for a contemporary appearance.

An optional central rafter on the long side of the rooflight splits the larger glass pane in two, giving the rooflight a more traditional look.  This option is also useful where site access is limited.

Configuration screengrab - 1

Standard sizes delivered in 3-5 days

  • 1500mm x 1000mm
  • 2000mm x 1000mm
  • 2000mm x 1500mm
  • 2500mm x 1000mm
  • 2500mm x 1500mm
  • 2500mm x 2000mm
  • 3000mm x 1000mm
  • 3000mm x 1500mm
  • 3000mm x 2000mm

Bespoke sizes available. Typically delivered in 15-17 days

  • Glazed with Low-E insulated double glazed glass units.
  • 4mm toughened outer, 90% Argon filled cavity, 6.8mm laminated soft coat Low E inner with PVB interlayer.
  • Choice of clear self-clean or blue solar-control self-clean glass as standard.
  • Special options available including aqua solar self-clean and neutral solar self-clean.
  • Centre pane U value* of 1.2W/m²K.



*Centre pane U-value is a measure of the thermal efficiency of the glazing type, measured vertically.

Powder coated aluminium frame available in combinations of 3 colours:

  • RAL 7016 grey external and RAL 9010 white internal
  • RAL 7016 grey external and internal
  • RAL 9005 black external and RAL 9010 white internal
  • RAL 9005 black external and internal
  • RAL 9010 white external and internal

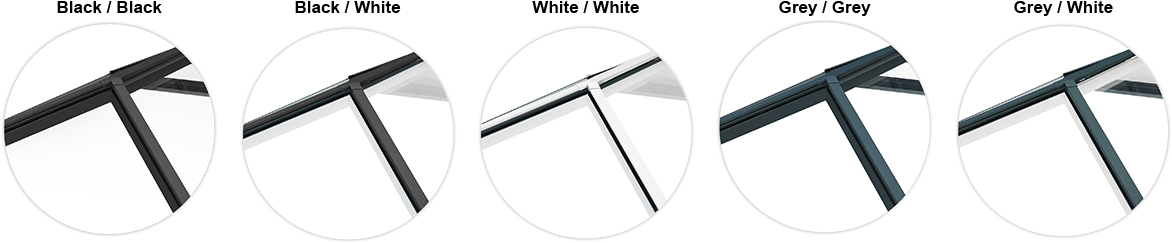

Roof Lantern Frame Colour
