Marlon Clickfix VF90

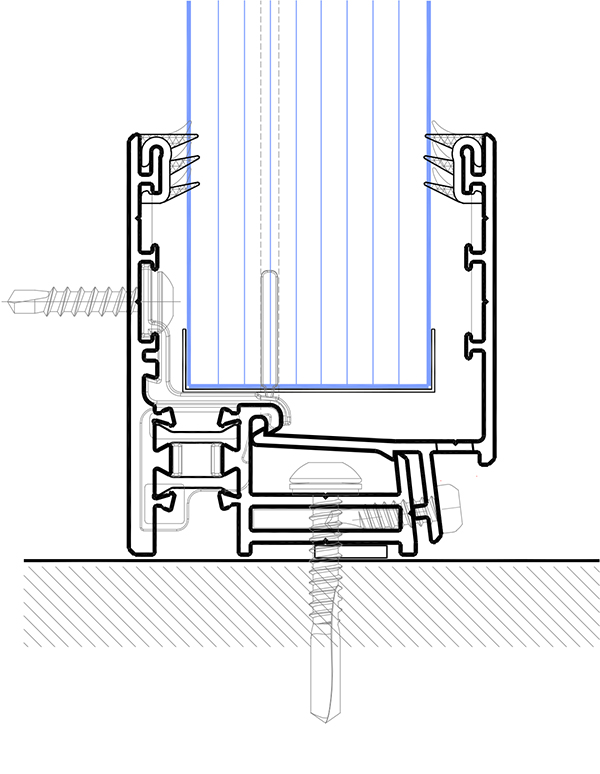

Marlon Clickfix VF90 is a thermally broken aluminium glazing frame system for use with Marlon Clickfix interlocking polycarbonate panels. This combination creates a fully weathertight glazing system and is the perfect solution for creating seamlessly glazed façades.
Installation is straightforward - the VF90 frame system is installed, then the Clickfix panels simply click and fix within the frame to create a striking, uninterrupted architectural glazing feature.
Marlon Clickfix VF90 is suitable for vertically glazed façades, northlights, cladding and partitioning applications, internally and externally.
Features
- Fully thermally broken system
- Integrates with Marlon Clickfix insulating polycarbonate panels
- Seamless glazing aesthetic
- Easy to use system for quick on-site installation
- Frame can be powder coated to job specific requirements
- Maximum airtightness
- Good acoustic performance
- Cost effective and light weight vertical glazing
- 10 year performance warranty
Applications
- Vertical façades
- Cladding
- Partitioning
- Rain screens
| PROPERTY | MARLON CLICKFIX VF |
|---|---|
| Panel thickness | 40mm |
| Panel structure | 10 wall |
| Modular width | 500mm |
| Overall width | 526mm |
| Panel length (standard) | Up to 12m |
| Panel weight | |
| U-value | 0.99 W/m2K |
| Light transmission clear (g) | 52% |
| Light transmission pearlescent | 44% |
| Fire class | B-s1, d0 to EN 13501-1 |
| Hail impact | Ø20 v >21m/sec |
| Temperature resistance | -40°C up to +100°C |
| Linear thermal expansion | 68x10-6 m/m°C |
| +/- LOAD (kN/m2) | SPAN (m) |
|---|---|
| 0.6 | 2.2 |
| 0.8 | 2.1 |
| 0.9 | 2.0 |
| 10. | 1.9 |
| 1.2 | 1.8 |
| 1.5 | 1.7 |
| 1.8 | 1.6 |
| 2.0 | 1.5 |
- Standard mill finish
- Optional polyester powder coating
- Special colours and marine finish available on request

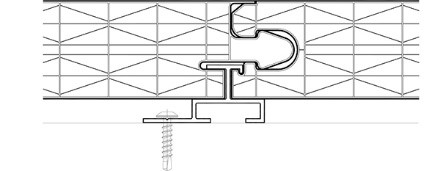

Marlon Clickfix VF is glazed with Marlon Clickfix modular polycarbonate glazing panels. The 40mm 10 wall multiwall panels have an integral male/female interlock which simply clicks and fixes into place for runs of unrestricted length.
Multiwall polycarbonate glazing panels
- Standard colours: Glass clear, pearlescent
- Special tints: Red, orange, yellow, green, blue, purple
- Coatings: Single sided UV protection as standard
- Other options: Double sided UV protection available on request
| COLOUR | LIGHT TRANSMISSION | SOLAR HEATGAIN COEFFICIENT | SHADING COEFFICIENT |
| Clear (g) | 52% | 0.42 | 0.48 |
| Pearlescent | 44% | 0.28 | 0.32 |
