Marlon ST - Multiwall Polycarbonate Sheet

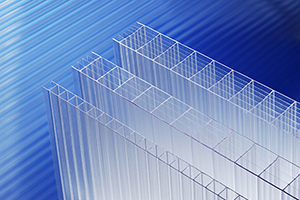

Marlon ST multiwall polycarbonate sheet is a lightweight insulating glazing material manufactured from damage resistant polycarbonate. Co-extruded UV protection provides resistance against the effects of UV weathering. Marlon ST multiwall sheets are available in a range of thicknesses, structures and options for a wide range of roofing, cladding and glazing applications. You can find the profile you need with our useful Profile Finder tool.
Marlon ST is also available in Marlon BioPlus, the ideal choice for projects that aim to deliver the highest standards in sustainability, allowing companies to demonstrate they are at the forefront of the low carbon circular economy.
Marlon BioPlus is made with a bio-circular attributed resin in which 71% of the fossil based raw material has been replaced by renewable hydrocarbons e.g. from used cooking oil, which dramatically reduces the impact of the finished sheet on the environment, whilst maintaining the same material properties and ease of processing.
- Light weight yet rigid and structurally strong
- Thermally insulating multiwall structure
- Options for maximum light transmission or solar control
- Extensive range of structures and thicknesses
- Available in Marlon BioPlus
- Rooflights and vertical glazing
- Canopies and walkways
- Conservatories and greenhouses
- Signage & display
- Energy saving
- High natural light transmission
- Optically clear
- Excellent structural durability
- Thermally insulating
- Damage and impact resistant
- Lightweight and easy to handle
- Co-extruded UV protection
- Excellent fire performance
- Limited warranty
- Extensive and growing range of structures
|Thicknesses:||4mm – 55mm|
|Colours & tints:||Standard: Clear, pearlescent, bronze, opal|
Dual: Bronze/opal, heatguard/opal
Solar: IR Blue, solar gold, heatguard
Opaque Reflective: White/black/white
|Structures:||Twinwall, Triplewall, Fourwall, Mwall, Xwall, Fivewall, Sixwall, 7Xwall, Sevenwall, XXwall, Ninewall, Tenwall|
|Specials:||Dual sided UV protection / Anti-drip, available in Marlon BioPlus|
- Marlon ST is a high quality, extruded, multiwall polycarbonate sheet with a co-extruded UV resistant coating
- As polycarbonate is a thermoplastic, it is important to take thermal expansion and contraction into account during any installation process.
- Marlon ST has been independently tested to various Fire Standards; for the most current certification please contact our Technical Department.
- Marlon ST is REACH and RoSH compliant, and 100% recyclable
- Any colour option is a through-colour so the colour of a cut edge will match the colour of the surface.
- Marlon ST sheets are covered by a limited warranty. For full details contact our Technical Department
Storage & sheet preparation
- Store sheets on a flat surface. Use an opaque cover, tightly secured, to protect from wind, rain and sun. Storage is always preferable indoors.
- Ensure that the clearly marked UV protected surface of the Marlon ST sheet is to the outside.
- Marlon ST sheets must always be installed with the ribs running vertically, or up-slope.
- Roofs should always be designed with a minimum slope of 5° to allow adequate rainwater run-off.
- Marlon ST sheet can be cut with a fine tooth circular saw or hand saw at a shallow angle.
- Use aluminium sealing tape at the top of the sheet to prevent ingress of moisture, dust and insects.
- Use breather tape at the bottom end of the sheet to minimise condensation and prevent dust or insects entering the sheet.
Thermal movement & fixing
Important - polycarbonate sheet will expand in the heat and contract in the cold.
- When drilling fixing holes they must be oversized (18mm) to allow the sheet to move.
- Drill between ribs and at least 40mm from the edge of the sheet.
- Fixings must not be overtightened, again this allows the natural movement of the sheet and will avoid unnecessary damage to the sheet.
- Cover breather tape with a ‘U’ profile sealed to the top face of the sheet with a small silicone bead.
- Use a low-modulus neutral silicone as an all-purpose silicone will cause polycarbonates to crack and disintegrate.
- Ensure all film is completely removed immediately after installation.
When installing any roofing material, including rooflights, ensure that safe working methods are adopted and appropriate safety equipment is used.
As a condition of ensuring that Marlon ST sheets perform at optimum throughout their service life, it is recommended that the sheets be cleaned periodically using suitable household cleaning agents as follows:
- Use lukewarm water to rinse the sheet and soften dirt.
- Make up a solution of lukewarm water and ordinary household cleaner or a mild soap and use this to wash the sheet.
- A sponge or soft cloth should then be used to gently remove dirt and grime.
- The cleaning process should then be repeated and the sheet rinsed and dried with a soft cloth.
- For larger areas clean the surface with a high-pressure water cleaner.
Care should be taken to observe the following precautions:
- Do not scrub Marlon ST sheet with brushes or sharp instruments.
- Avoid any abrasives or cleaners of a highly alkaline composition.
- It is generally advisable in all instances to test any cleaner on a sample piece of the Marlon ST sheet first and it should also be remembered that cleaners and solvents which state that they are suitable for cleaning polycarbonate may not be safe for use on the UV protective surface of the panels.
Contact our team to get more information about this product. We will try our best to answer you shortly.

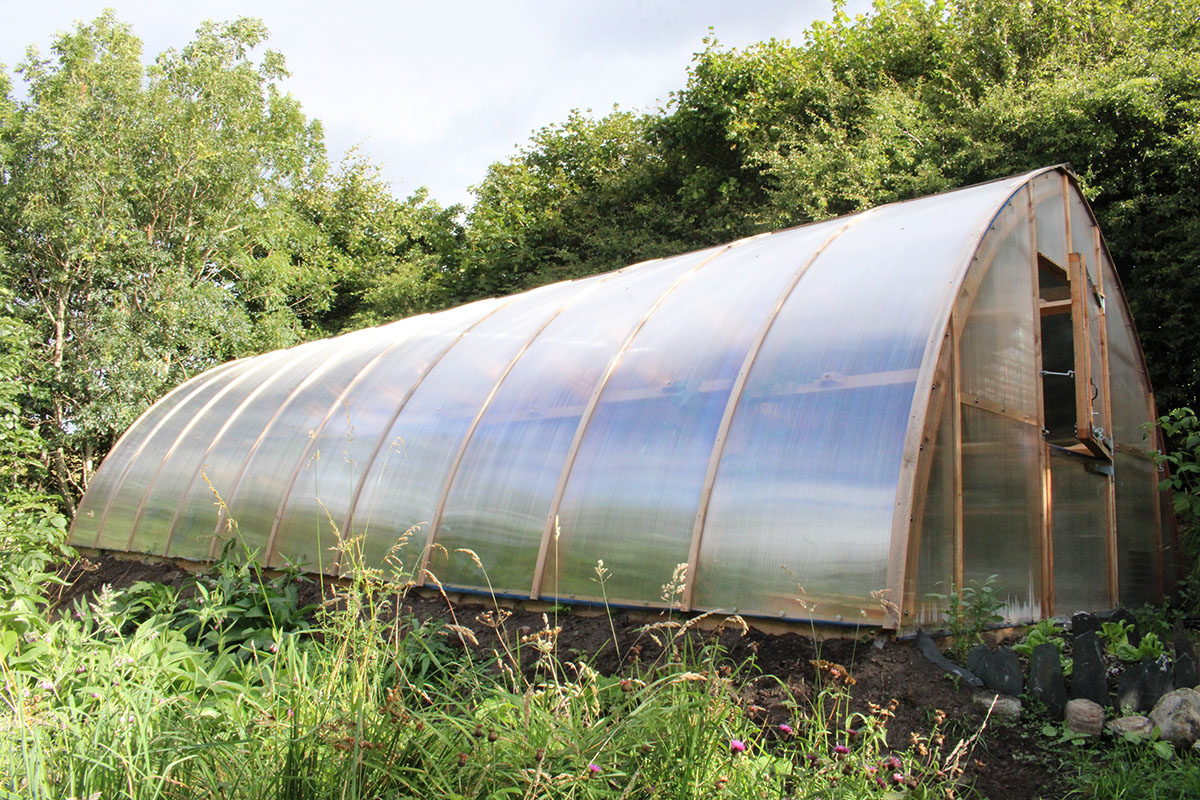

The Timbertunnel is long tunnel shaped greenhouse for growing fruit and veg made from a Douglas Fir wooden structure and Marlon ST multiwall polycarbonate.View Case Study

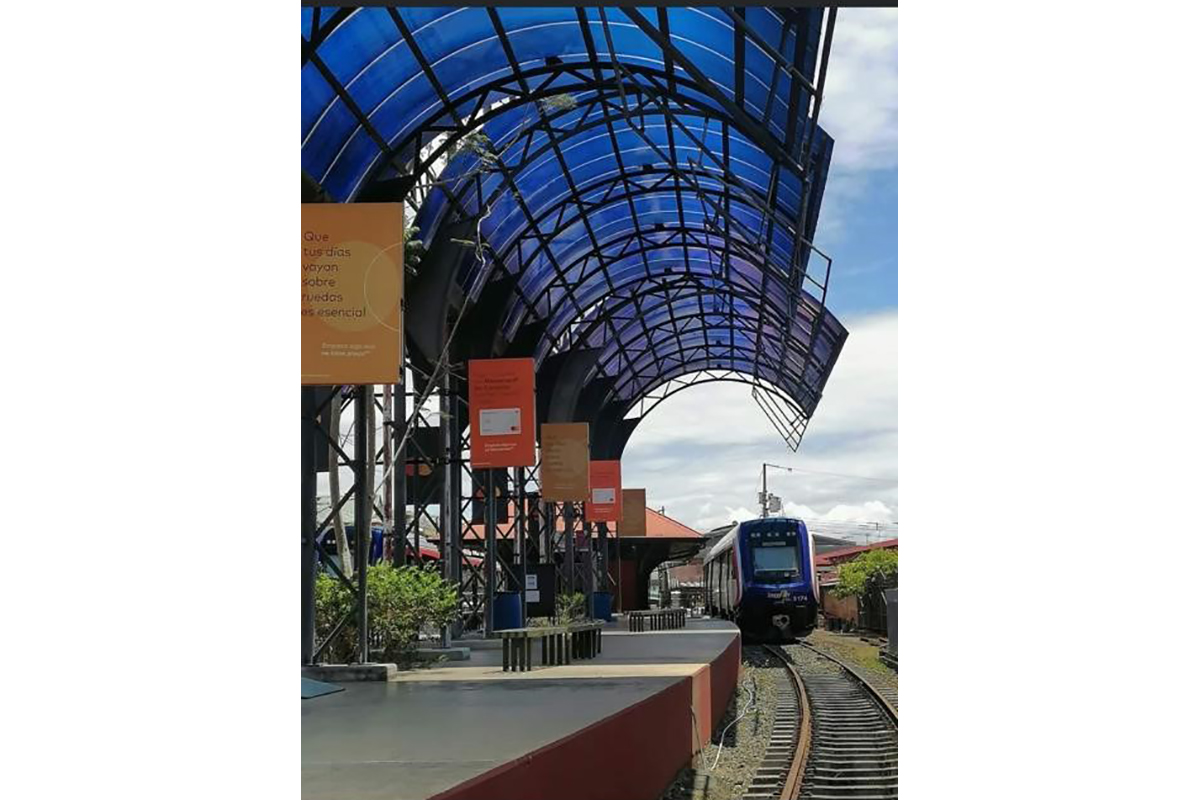

Marlon ST in blue has been used to create an eye-catching canopy in a Central American train station.View Case Study

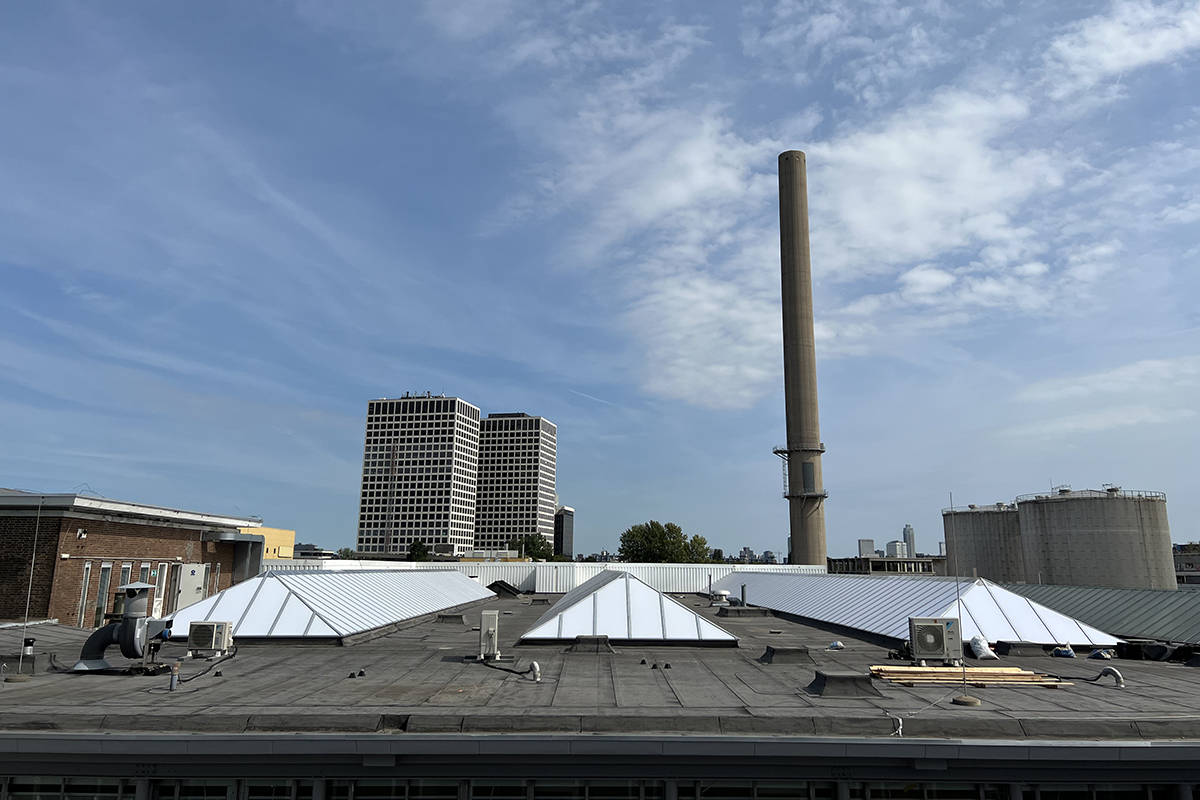

Marlon ST 32mm 9 wall opal polycarbonate has been used in a warehouse refurb.View Case Study

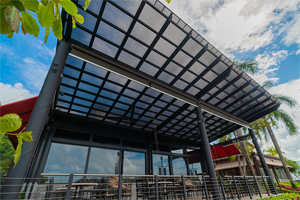

Marlon ST polycarbonate multiwall sheet was chosen to create a canopy over this restaurant by the marina in Costa Rica.View Case Study

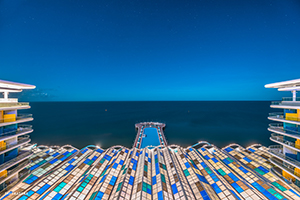

Four different tints of Marlon ST multiwall polycarbonate sheet were supplied to create this stunning rooflight and vertical façade on the Paragraph Resort & Spa, Georgia.View Case Study

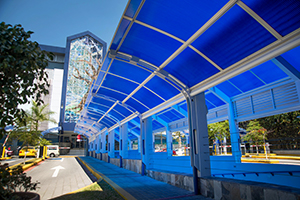

16mm blue tinted Marlon ST multiwall polycarbonate was used to create this striking walkway at Hospital Clinica Biblica in Costa RicaView Case Study

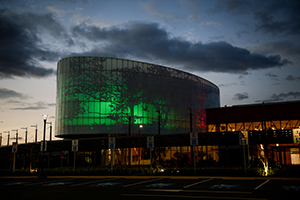

8mm Pearlescent Marlon ST was used to glaze the rooflight and curved façade of the Centro de Convenciones in Costa Rica.View Case Study

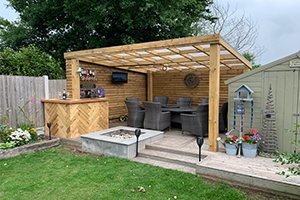

Clear 10mm Twinwall Marlon ST was used to glaze the roof of this garden bar in the UK.View Case Study
